BLDC Mars 0913 permanent magnet motor

KL-3030485
Hover on image to enlarge
In stock
1 436
Ask a question
+

Description

Product Description:

Output power 12kW continuous and 30kW peak (at 96V).

Designed for long life. Does not require maintenance of the brush.

The motor has 92% efficiency at voltage from 24V to 96V.

DC 125A AC (Motor)

Direct current 180A DC (Controller)

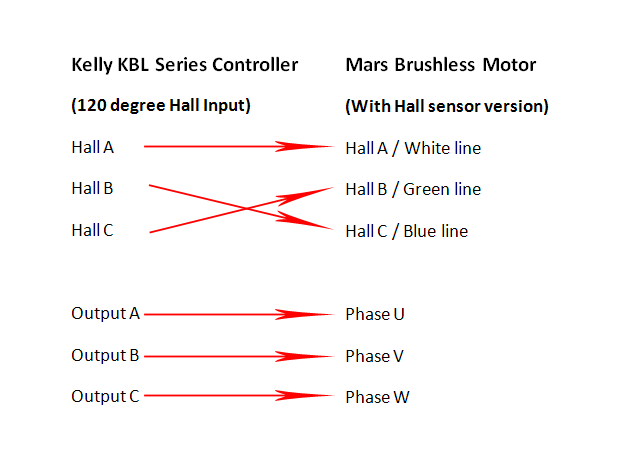

This is a 3-phase synchronous motor with permanent magnet, connected in a Y-circuit, axial air gap and 3 Hall sensors with electrical synchronization 120 degrees . It has two stators with a rotor in the center. 1) It is a 4-pole motor (8 magnets). 2) The interphase resistance of the winding is 0.013 Ohm.
