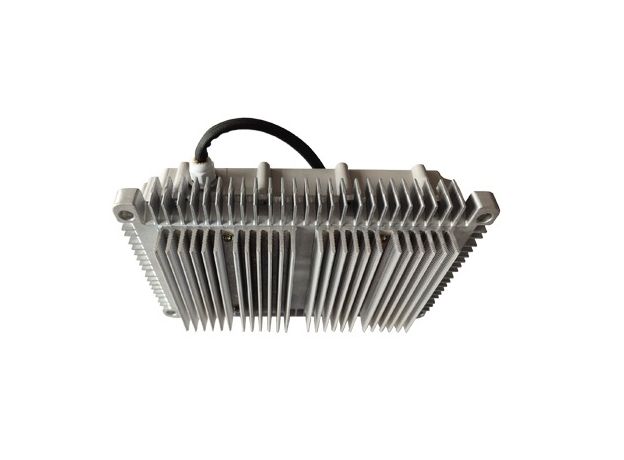

KAC7275N high power induction motor AC controller, 40V-90V, 500A

KAC7275N High Power Induction Motor AC Controller, 40V-90V, 500A

General functions:

(1) Advanced fault detection and protection. A beep indicates the fault code. You can also  read the error code or message in the PC software or Android app.

(2) Monitor battery voltage. The controller will stop moving if the battery voltage is too high and will gradually reduce the motor drive power as the battery voltage drops until it shuts off completely at the "Low Battery Voltage" preset setting.

(3) Built-in current loop and overcurrent protection.

throttle release, brake switch braking or reverse braking, neutral braking. Settable deceleration time and brake release time in configuration software. It is possible to program the amount of regeneration in the user program for different regeneration modes.

18) Adjustable accelerator pedal protection: the controller will not work if high gas is detected when turned on.

19) Current multiplication : Less current from battery, more current to motor.

20) Easy installation: 3-wire potentiometer can work.

21) Standard PC/Laptop for programming. There is another choice for customers to program the KAC-N controller. Standard Android tablet for programming. A Z-TEK USB to RS232 cable is required to connect the controller to the APP. in tablet.

22) User program provided. Easy to use. The user program can be downloaded free of charge from our website.

Characteristics

• Operating frequency: 10 kHz
• Current battery standby: <0.5mA.
• 5V sensor supply current: 40mA.
• Controller supply voltage range, PWR, 40 to 90V.
• li>
• Settable battery voltage range, B+. Maximum operating range: 30V to 1.25*rated voltage.
• Maximum output frequency can reach 250Hz.
